Mini Portable Bluetooth Thermal Printer With Wireless USB Bluetooth Interface For Windows Android IOS POS Printer
Mini Bluetooth Printer is a portable thermal printer that combines USB,RS-232 Serial and Bluetooth communication interface together, The printer could be powered by car charger, and rechargeable battery(depending on specified models) . These special characters make it successfully be applied to a variety of instruments, handheld data printing.
Overview
Product Features
Label printing
Gap detection and black mark detection allow printing of labels in different sizes.
Printing features
High printing speed for text in various languages and graphics.
Low energy Bluetooth
Supports multiple host connections
Long Operating hours
1500mAh battery and highly optimized power management schemes ensure long operating hours without disruptions
Product Specification:
1,PRINTER SPECIFICATIONS
| Item | Specification |
| Overall Dimension (W×D×H) | 120×85×51mm |
| Weight | 134g |
| Color | Dark |
| Effective print width | 57mm |
| Print method | Thermal line printing |
| Print commands | ESC/POS |
| Print speed | Up to 90mm/sec |
| Resolution | 8 dots/mm(203dpi) |
| Print font | 12x24/24x24 |
| Column capacity | 32/16 |
| Character size | 1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH) |
| Paper dimensions | 58.0±0.1mm x40.0mm |
| Paper thickness | 0.06 to 0.08mm |
| Character set | Alphanumeric/ Chinese Kanji |
| Interface | Bluetooth |
| Data buffer | Up to 5K bytes |
| Power Adapter | 9V DC/2A |
| Battery Power | 7.4V DC/2600mA |
| Other features | Paper detection, power detection, Manual shut down |
| Working conditions | Tem.-10℃～50℃,Hum.10%～90% |
| Storage conditions | Tem.-20℃～70℃,Hum.5%～95% |
Printing Method: Thermal line printing
Print speed: 90mm/sec
Reliability TPH Life: 100km
Resolution: 203DPI (8dot/mm)
Printing Width: 48mm (384dot)
Paper Width: 58±01mm
Roll Diameter: φ≤50mm
Paper Type: Thermal Paper
Power supply (optional): rechargeable lithium batteries
Battery: Lithium: 7.4VDC/1500mA,
Charging mode: DC 9V/1.5A
Support the battery display function
Print parameters: support to download the Logo trademark
Character size:
The 384 - point/line
The Font A: 12 * 24 points, (wide) 1.5 * 1.5 (high) mm
The Font B: 9 *17points, 1.1(wide) * 2.1 (high) mm
Jane/traditional: 24 * 24 points, (wide) 3.0 * 3.0 (high) mm
Printing Chinese character: Chinese: simplified Chinese 24x24 point. support 18030 font library, support Taiwan and HK traditional(complex font)
ANK: ANK characters
Extended character table:
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai
Emulation: ESC/POS/STAR command
Interface: standard RS232/USB, Bluetooth 2.0/SPP agreement or infrared/IRCOMM agreement (optional).
Working Temperature: -10～50℃
Humidity: 10～90%
2, Application Area
It applies mobile products to supporting the use, and suited to outdoor work environments.
The feature has small size,light weight,reliable performance,simple to connect,easy to use.
Applications:
The mobile police system
The tobacco distribution system
The utility meter reading system
The mobile office / mobile logistics systems
The portable instrumentation
The testing equipment, ancillary equipment.
Low operating costs (no ribbons, ink cartridges)
Weight: about 400g (including accessories: lithium-ion batteries, cable, test paper)
Our service:
1. OEM/ODM service.
2. Software customization according to customers’ requirement.
3. One year warranty for main device as well as 7*24 Online or phone technical support service.
4. Consulting Services help clients evaluate hardware, software and integrated services.
5. Onsite technical support service if online and phone services are not accessible.

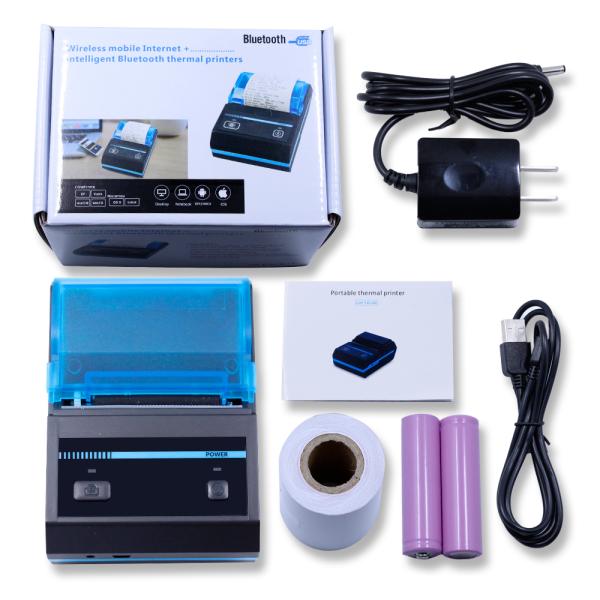

Products Display
